Volkswagen Jetta, Golf, GTI 1999, 2000
Suspension, Wheels, Steering

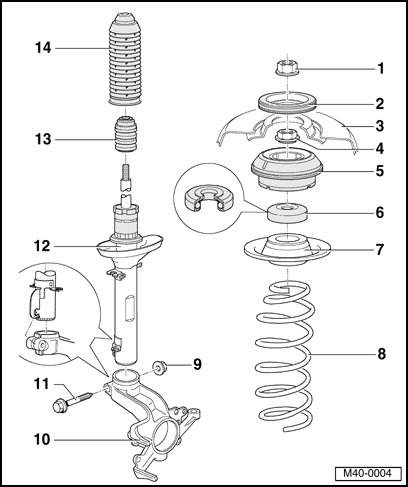

II - Front suspension strut, servicing (Page 40-44)


1 - Self-locking nut

60 Nm (44 ft lb)

Always replace

2 - Stop

3 - Suspension strut turret

4 - Nut

60 Nm (44 ft lb)

5 - Suspension strut mount

6 - Axial ball bearing

7 - Spring plate

Only on vehicles with heavy duty suspension (P/N 1GB)

This P/N if relevant is entered on vehicle data label in luggage compartment or Service booklet

8 - Coil spring

Observe color code

Outer surface of spring must not be damaged


Volkswagen Jetta, Golf, GTI 1999, 2000
Suspension, Wheels, Steering
Requirements (Page 44-8)

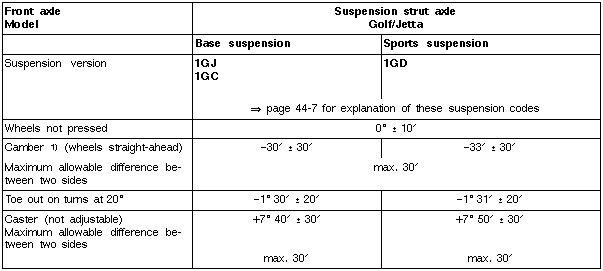

Wheel alignment specifications


1) Camber adjustments are not possible. Corrections are possible by moving sub-frame slightly. Adjustment approx. 10' to 15'.



Volkswagen Jetta, Golf, GTI 1999, 2000
Suspension, Wheels, Steering

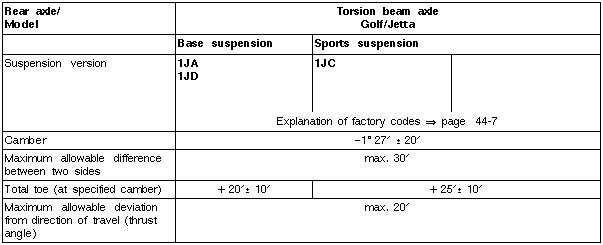

Requirements (Page 44-9)
















Volkswagen Jetta, Golf, GTI 1999, 2000
Suspension, Wheels, Steering
Requirements (Page 44-10)
Front wheel camber, adjusting

Camber cannot be adjusted

If vehicle is out of specification, check trim height and balance if necessary  page 44-6.

By adjusting sub-frame it is possible to bring camber within tolerance.



- Loosen bolts -1- and -2-.

- Move sub-frame to equalize camber on both sides.

- Check caster; caster can also change when moving sub-frame.

Notes:

Always replace sub-frame bolts (one at a time) when making this type of adjustment.
